Running Kubernetes workloads continuously is not always necessary. Development environments, test services, background processors, scheduled workloads, and event driven applications may sit idle for hours while their pods continue consuming cluster resources.

A common requirement is simple:

  • How can I scale an Azure Kubernetes Service deployment to zero replicas and bring it back when required?
  • During database maintenance, I need to scale my Pods to zero to ensure they are disconnected. How can I achieve this to prevent any logs or incidents from being triggered during this period?

There are following  main approaches:

  1. Manual scaling without Horizontal Pod Autoscaler
  2. Scaling with Horizontal Pod Autoscaler using external or object metrics

The correct option depends on whether the application needs to start automatically when new work arrives.

Scale AKS Deployment to Zero: Understand the Main Problem

Scaling a Deployment from one or more replicas down to zero is easy.

The difficult part is scaling it back from zero automatically.

A normal Horizontal Pod Autoscaler commonly uses processor or memory utilization from running pods. If the Deployment has zero running pods, there is no pod processor or memory utilization to measure.

This creates the central scale from zero problem.

Kubernetes 1.36 improves this area by continuing development of Horizontal Pod Autoscaler scale to zero support for Object and External metrics (Not applicable for CPU, RAM or custom metrics). However, the feature is Alpha and disabled by default. It is controlled by the HPAScaleToZero feature gate. It is not a general replacement for an event source or activation mechanism.

Option 1: Scale an AKS Deployment to Zero Without HPA

If automatic scaling is not required, the simplest approach is to scale the Deployment manually.

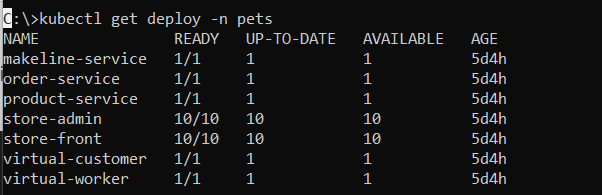

  1. First, check the existing Deployment:
Bash
kubectl get deploy -n Pets
Scale AKS Deployment to Zero

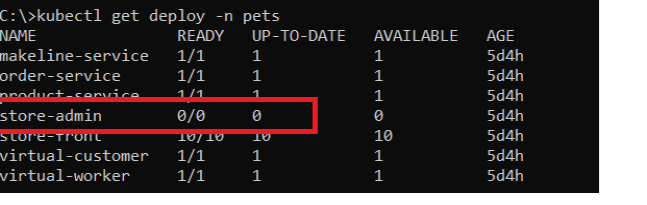

2. Scale the Deployment to zero:

Bash
kubectl scale deployment myapp --replicas=0
Scale AKS Deployment to Zero

3. Verify the Deployment:

Bash
kubectl get deployment myapp

4. Verify that no application pods remain:

Bash
kubectl get pods

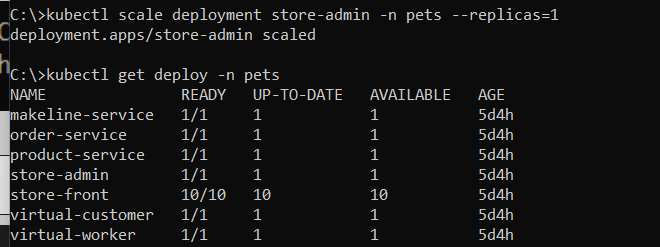

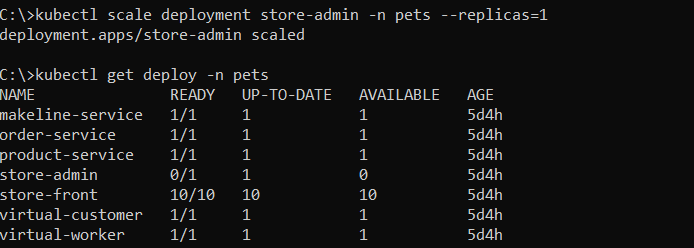

5. To start the application again:

Bash
kubectl scale deployment myapp --replicas=1

This method is suitable for development environments, temporary shutdowns, maintenance windows, demonstrations, and applications that do not need automatic activation.

Important limitation

If a Horizontal Pod Autoscaler manages the Deployment, manual scaling may not produce the expected long term result.

Check whether an autoscaler exists:

Bash
kubectl get hpa

Inspect it:

Bash
kubectl describe hpa myapp-hpa

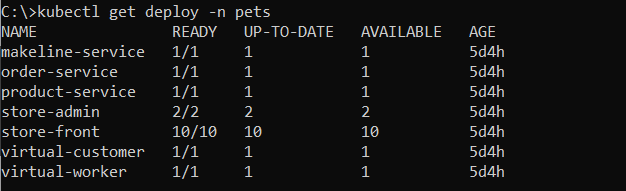

If the autoscaler has a minimum replica count of one, it can return the Deployment to at least one replica.

Option 2: Scale to Zero When HPA Exists

A traditional Horizontal Pod Autoscaler is designed to adjust replica counts based on observed metrics.

A typical processor based configuration looks like this:

YAML
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: store-admin-hpa
  namespace: pets
  resourceVersion: "283928"
  uid: 669dc750-90c9-4555-9771-7d3fe9a5ff0f
spec:
  behavior:
    scaleDown:
      policies:
      - periodSeconds: 60
        type: Percent
        value: 10
      selectPolicy: Max
      stabilizationWindowSeconds: 300
    scaleUp:
      policies:
      - periodSeconds: 15
        type: Percent
        value: 100
      selectPolicy: Max
      stabilizationWindowSeconds: 0
  maxReplicas: 10
  metrics:
  - resource:
      name: cpu
      target:
        averageUtilization: 75
        type: Utilization
    type: Resource
  - resource:
      name: memory
      target:
        averageUtilization: 80
        type: Utilization
    type: Resource
  minReplicas: 2
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: store-admin
status:
  conditions:
  - lastTransitionTime: "2026-06-30T16:21:57Z"
    message: recommended size matches current size
    reason: ReadyForNewScale
    status: "True"
    type: AbleToScale
  - lastTransitionTime: "2026-07-05T15:11:11Z"
    message: the HPA was able to successfully calculate a replica count from cpu resource
      utilization (percentage of request)
    reason: ValidMetricFound
    status: "True"
    type: ScalingActive
  - lastTransitionTime: "2026-07-05T15:09:10Z"
    message: the desired count is within the acceptable range
    reason: DesiredWithinRange
    status: "False"
    type: ScalingLimited
  currentMetrics:
  - resource:
      current:
        averageUtilization: 100
        averageValue: 1m
      name: cpu
    type: Resource
  - resource:
      current:
        averageUtilization: 2
        averageValue: 4220Ki
      name: memory
    type: Resource
  currentReplicas: 3
  desiredReplicas: 3
  lastScaleTime: "2026-07-05T15:11:11Z"

The important setting is:

YAML
minReplicas: 2

With this configuration, the autoscaler maintains at least two replica.

For a temporary shutdown, one practical approach is to remove the autoscaler and scale the Deployment to zero:

Before deleting the autoscaler, export its configuration if it is not already managed through source control or infrastructure automation:

YAML
kubectl get hpa myapp-hpa -o yaml > myapp-hpa-backup.yaml
YAML
kubectl delete hpa myapp-hpa

Then:

Bash
kubectl scale deployment myapp --replicas=0

To restore it later:

Bash
kubectl apply -f myapp-hpa-backup.yaml

This is operationally simple, but it is not the preferred method for applications that need automatic activation.
